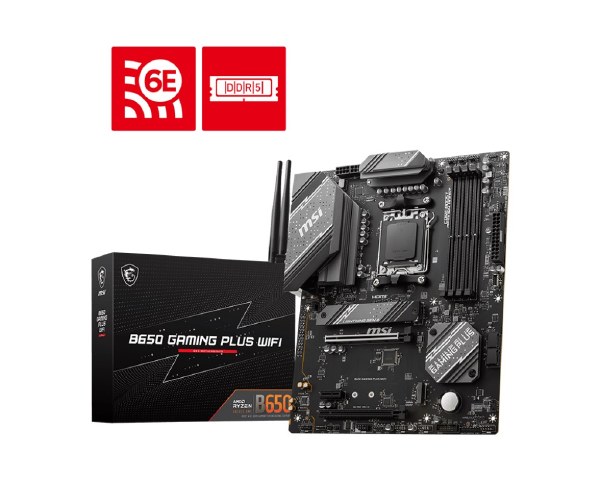

MSI B650 GAMING PLUS WIFI AMD Ryzen AM5 Motherboard

SPECIFICATIONS
Model Name B650 GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-6000+MHz (OC)
Storage 2x M.2 Gen 4 x4 64Gbps slots,
4x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C),
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C),
6x USB 3.2 Gen 1 5Gbps (6 Type-A),
4x USB 2.0
LAN Realtek®
RTL8125BG 2.5Gbps LAN
Wi-Fi / Bluetooth AMD®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
